DEXdeck Beams
Our beams are custom designed to suit the particular requirements of your design. The beam architecture is not limited by any size constraint. The beams are precision parts cut out by a high speed optical laser and formed by CNC press brakes. We can inexpensively add custom slots to easily integrate with the rest of your design components… Learn More
DEXdeck Columns
Our columns all have adjustable feet. They all have 1 7/8” access holes at every connection point so wires can be run through the columns. Wire access holes can be added to the bottom of the columns so wires can be run up through the columns from the floor. Learn More
DEXdeck Deck Panels
Our deck panels are designed for a standard load rating of 125 lbs./ sq. ft. Common sizes are 5’ x 5’ and 4’ x 8’. Upper and lower skins are ½” birch plywood for enhanced point load capacity. Adjacent deck panels are roto-locked together. Learn More
DEXdeck Handrail
There are many different handrail designs. The top cap can be different sections and various materials, including wood. Balusters are different shapes and different materials: most often aluminum for light weight and low cost. Handrail, also known as guardrail, is typically enclosed with an infill panel, multiple rails or stainless steel cabling. Learn More
DEXdeck Stairs
Our stairs are lightweight and fast to set up. In the gallery, there is a photo of 6′ wide, 12′ high staircase. Two of these were installed by five carpenters in 13 minutes, without a forklift. Our stairs are typically aluminum or aluminum with wood treads or risers and they are built in two-pieces to make them easy to handle and ship. Learn More
Miscellaneous
In addition to custom shapes, custom heights, and custom stairs and handrail, we can provide DEXwalls integrated with the structure. We also provide custom features like the circular header and the elevator shown. Learn More
Independent Structural Approval
Independent Structural Approval is provided with every deck structure. Learn More
DEXdeck Performance Comparison
DEXdeck Layouts
Scroll down for downloadable 3D models.
Gallery Instructions
Click the picture to see the larger and/or whole picture. You may then scroll left or right to see more images. Use the Esc key on your keyboard or click away from the image to close the enlarged image gallery section.
10 x 10
10 x 15 Option 1
10 x 15 Option 2
15 x 15
10 x 20 Option 1
10 x 20 Option 2

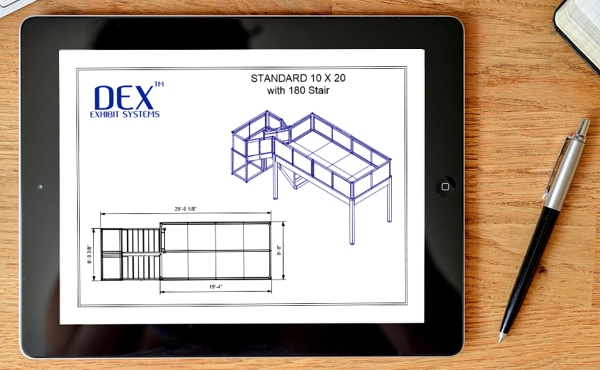

10 x 20 with 180 Stair
15 x 20 Option 1
15 x 20 Option 2
15 x 20 Option 3
20 x 20
20 x 40
50 X 50 with Bridges
3D models
The 3D models are saved as 2013/2014/2015/2016 dwg files.
The QUICset detail has been simplified: it is not the actual geometry.
To keep the file size small and make it easy to resize beams, they have been represented as a rectangular section.
If you would like any of the files saved as an earlier version, or saved as dxf, Vectorworks, or other file format (there are 6 or 7), please contact us.
If you use a version other than 2016, please let us know when asking for a model in a different file format.
If you are creating a custom rental we can model it for you.
DEXdeck 3D dwg Models
